Cable grips are invariably made from wooven mesh wire. The same diameter as the wire rope on which it is to be used to facilitate reaving onto crane blocks, or a new wire rope replacing a condemned rope, the sock is placed over the ends of the new and old wire ropes and, due to the woven texture, it tightens as it is pulled. This grip is easily fitted and removed, operates safely, holds the wire rope securely, and saves labour cost. Two different specifications and three types are available.

JAPAN SPECIFICATIONS
Rope
Diameter
SIZE (MM)
Standard (R) Joint (R) Joint (RB)
a b l a b l l
7-13
400 190 590 400 210 1010 900
13-19
550 220 770 550 220 1320 1300
19-25
750 220 970 750 220 1750 1600
25-38
900 310 1210 900 280 2080 2000
38-50
1300 360 1660 1300 280 2880 2700

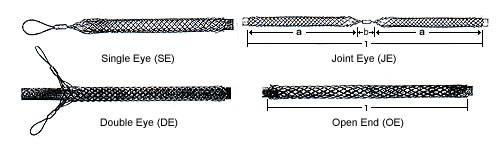

BRITISH SPECIFICATIONS
Rope
Diameter
SIZE (MM)
Single/Double (SE/DE) Joint (JE) Open (OE)
a b l a b l l
7-13
230 75 305 230 75 535 390
13-19
355 80 435 355 80 790 610
19-25
410 100 510 410 100 920 715
25-38
460 150 610 460 150 1070 820
38-50
535 200 735 535 200 1270 920
