> GEMLA > Universal Hook - UH Type


Stock Number	Code	Working load limit	Dimensions mm						Weight approx. Kgs

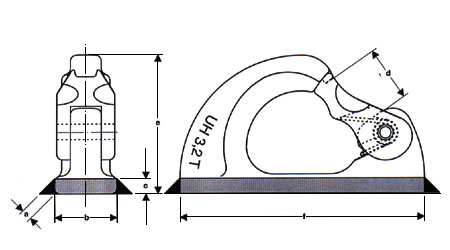

Stock Number	Code	Working load limit	a	b	c	d	e	f	Weight approx. Kgs
2301	UH 1,1 T 75	1100	4	20	6	18	46	80	0,4
2302	UH 2 T 96	2000	5	27	7	24	59	105	0,6
2303	UH 3,2 T 118	3200	6	32	8	27	72	129	0,9
2304	UH 5,3 T 189	5300	7	40	11	34	89	156	2,4
2305	UH 8 T 305	8000	9	50	14	39	103	178	3,7
2306	UH 12,5 T 440	12500	10	60	15	50	119	208	7,0

UH universal hooks have the following advantages:

1. The heavy duty spring is stainless and has double legs.

2. The latch is made from alloy steel and drop forged making it wear resistant and durable.

3. A smooth outer contour and a very low overall height to avoid hitching.

4. Inside contour of latch designed so that unfavourable loads on latch are made more difficult.

5. Big opening despite low height.
