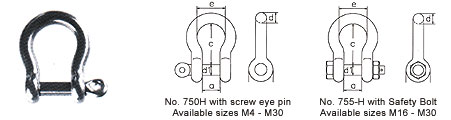

No. 750 Bow Shape.
With Screw Eye Pin.
Other Pins on inquiry.
Larger sizes upon inquiry.
For added strength, ask for
special stainless alloy.

Size (D1)	A	C	D	F	Break Load Kps.	SWL Kps.	Weight kgs/100
M 4	8	18	4.0	13	800	75	1
M 5	10	18	5.0	15	1.200	100	2
M 6	12	22	6.0	17	1.800	200	4
M 8	16	30	8.0	23	2.800	400	7
M 10	20	36	9.5	27	4.300	600	11
M 11	22	42	11.0	31	5.200	750	17
M 12	25	47	12.0	37	6.500	900	25
