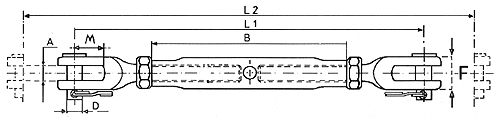

Rigging Screws w/Stopnuts
No. 763 Narrow Jaws.
No. 6312 Narrow Jaw and Bolt Terminal.
Can also be fitted with Eye

Size UNF mm	Wire mm	Length (mm)			Bolt dia (D)	Inside jaw (A)	Break load Kps.	Weightkg /100
		Body (B)	Min. (L1)	Min. (L2)
1/4", 6	3	65	110	155	5.0	5.2	1.300	7
1/4", 6	3	90	140	205	5.0	5.2	1.300	9
5/16", 8	4	100	160	235	6.0	7.8	2.100	15
3/8", 10	5	115	185	265	8.0	9.1	3.200	25
7/16", 11	6	130	210	305	9.5	10.1	4.200	35
1/2", 12	7	155	260	380	11.0	11.0	5.700	55
5/8", 16	8	190	315	460	12.7	13.0	6.700	95
3/4", 19	10	240	410	565	16.0	17.0	11.000	190

No. 764 Two Wide Jaws.
No. 6412 Wide Jaw and Bolt Terminal

Size UNF mm	Wire mm	Length (mm)			Bolt dia (D)	Inside Jaw (A)	Break Load Kps.	Weight kg/100
		Body (B)	Min. (L1)	Min. (L2)
1/4", 6	3	90	145	210	6.0	7.8	1.500	13
5/16", 8	4	100	165	240	8.0	9.1	2.300	18
3/8", 10	5	115	195	270	9.5	10.1	3.500	30
7/16", 11	6	130	220	300	11.0	11.0	4.600	40
1/2", 12	7	155	270	375	12.7	13.0	6.200	60
5/8", 16	8	190	320	450	15.0	16.0	7.700	110
3/4", 19	10	240	420	570	19.0	20.0	12.500	210
1", 24	12	325	520	740	24.0	28.0	20.000	510

Rigging Screws Open Body w/Splitpin.
Machined Jaws.
No. 766 Two Narrow Jaws.
No. 6612 Narrow Jaw and Bolt Terminal.
Can also be fitted with Eye.

Size UNF mm	Wire mm	Length (mm)			Bolt dia (D)	Inside Jaw (A)	Break Load Kps.	Weight kg/100
		Body (B)	Min. (L1)	Min. (L2)
1/4", 6	3	90	140	205	5.0	5.2	1.300	9
5/16", 8	4	100	160	235	6.0	7.8	2.100	15
3/8", 10	5	115	185	265	8.0	9.1	3.200	25
7/16", 11	6	130	210	305	9.5	10.1	4.200	35
1/2", 12	7	155	260	380	11.0	11.0	5.700	55
5/8", 16	8	190	315	460	12.7	13.0	6.700	95
3/4", 19	10	240	410	565	16.0	17.0	11.000	190

No. 767 Two Wide Jaws.
No. 6712 Wide Jaw and Bolt Terminal.
Larger sizes upon inquiry.

Size UNF mm	Wire mm	Length (mm)			Bolt dia (D)	Inside Jaw (A)	Break Load Kps.	Weight kg/100
		Body (B)	Min. (L1)	Min. (L2)
1/4", 6	3	90	145	210	6.0	7.8	1.500	13
5/16", 8	4	100	165	240	8.0	9.1	2.300	18
3/8", 10	5	115	195	270	9.5	10.1	3.500	30
7/16", 11	6	130	220	300	11.0	11.0	4.600	40
1/2", 12	7	155	270	375	12.7	13.0	6.200	60
5/8", 16	8	190	320	450	15.0	16.0	7.700	110
3/4", 19	10	240	420	570	19.0	20.0	12.500	190

Rigging Screws Closed Body with Pelican Hook.
Machined Parts.
No. 773 Jaw and Pelican Hook.
No. 7312 Bolt Terminal and Pelican Hook.

Size UNF mm	Wire mm	Length (L)		Bolt dia. (D)	Inside
		Min.	Max.		Jaw (A)	Hook (K)
5/16", 8	4	140	175	6.0	7.8	10
7/16", 11	6	185	230	9.5	10.1	18
